Weintek HMI - Authorized Distributor in India

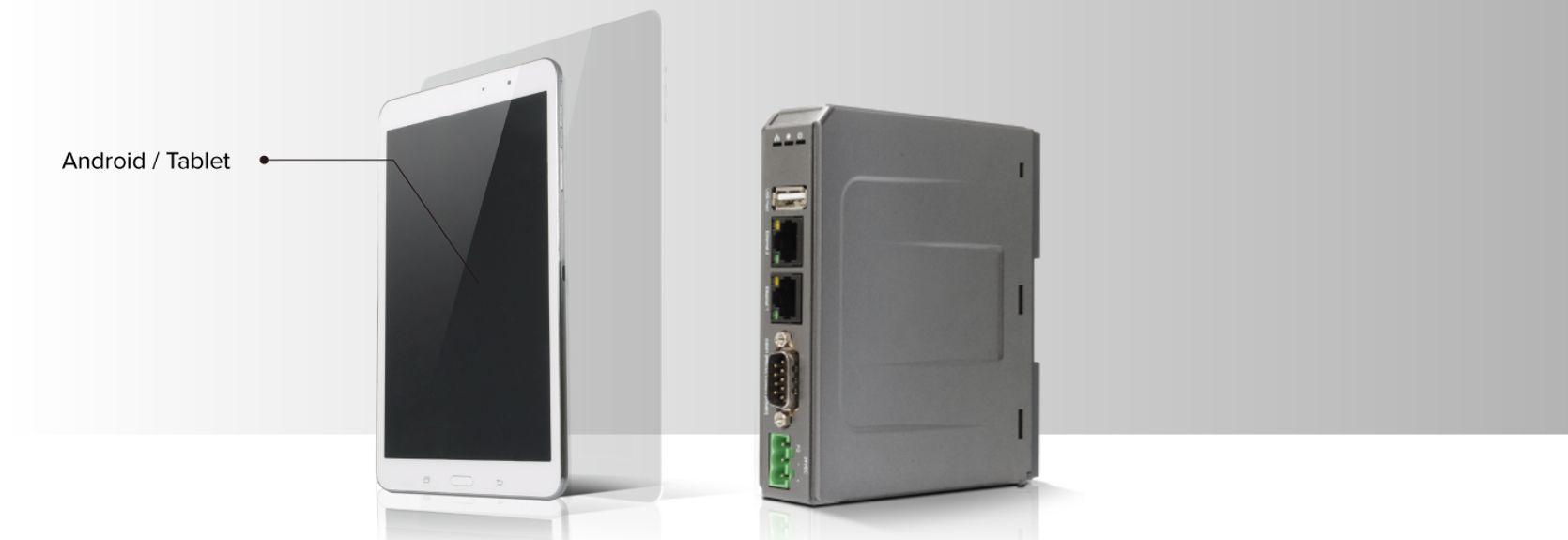

Wireless access
The wireless tablets like iPad or Android
tablets not only deliver great performance
and visibility, but also enable operators
remotely monitor operational status of
machines anywhere on the plant floor.

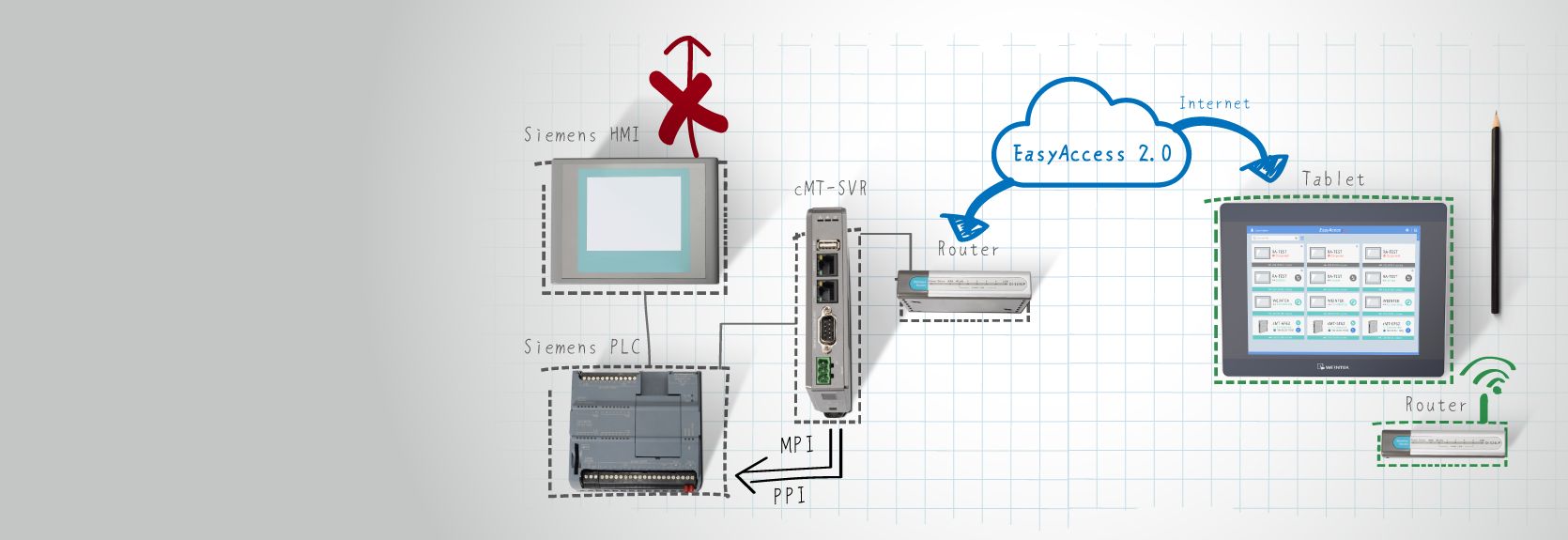

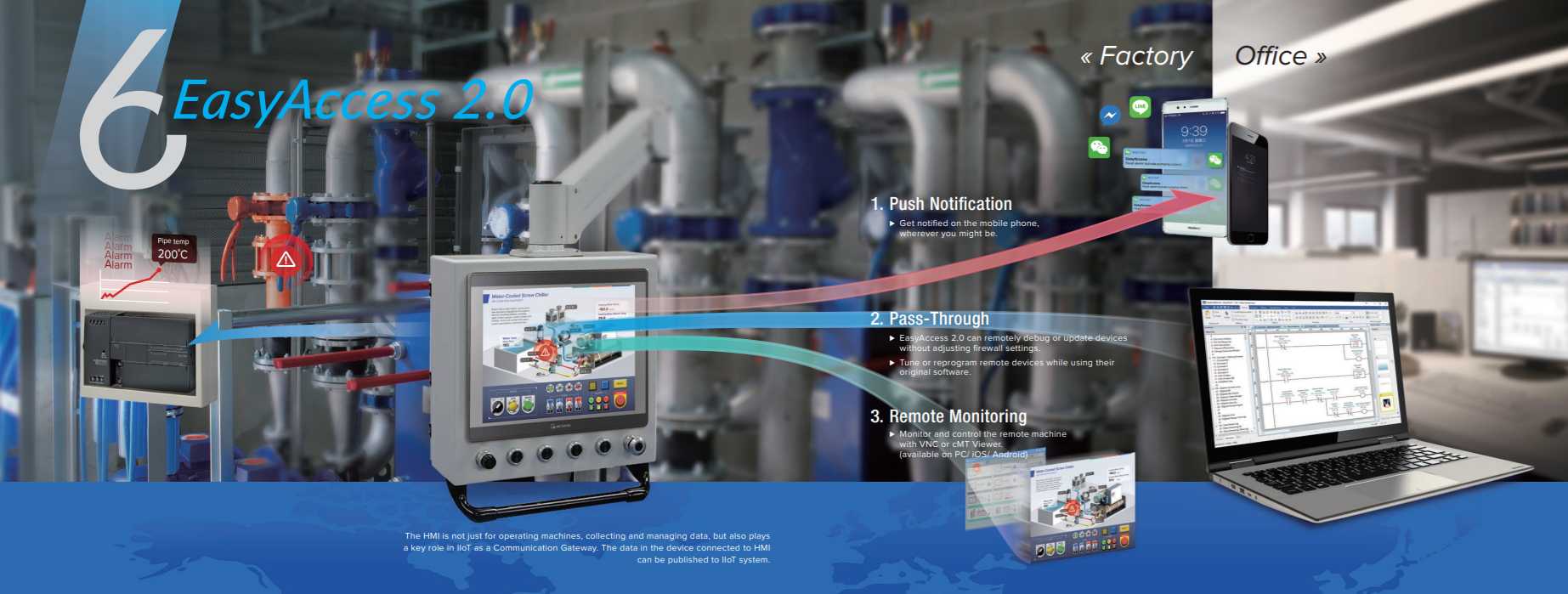

Remote access
With remote access technology,
operators can remotely diagnose
the operational status of machines
without presenting on site.

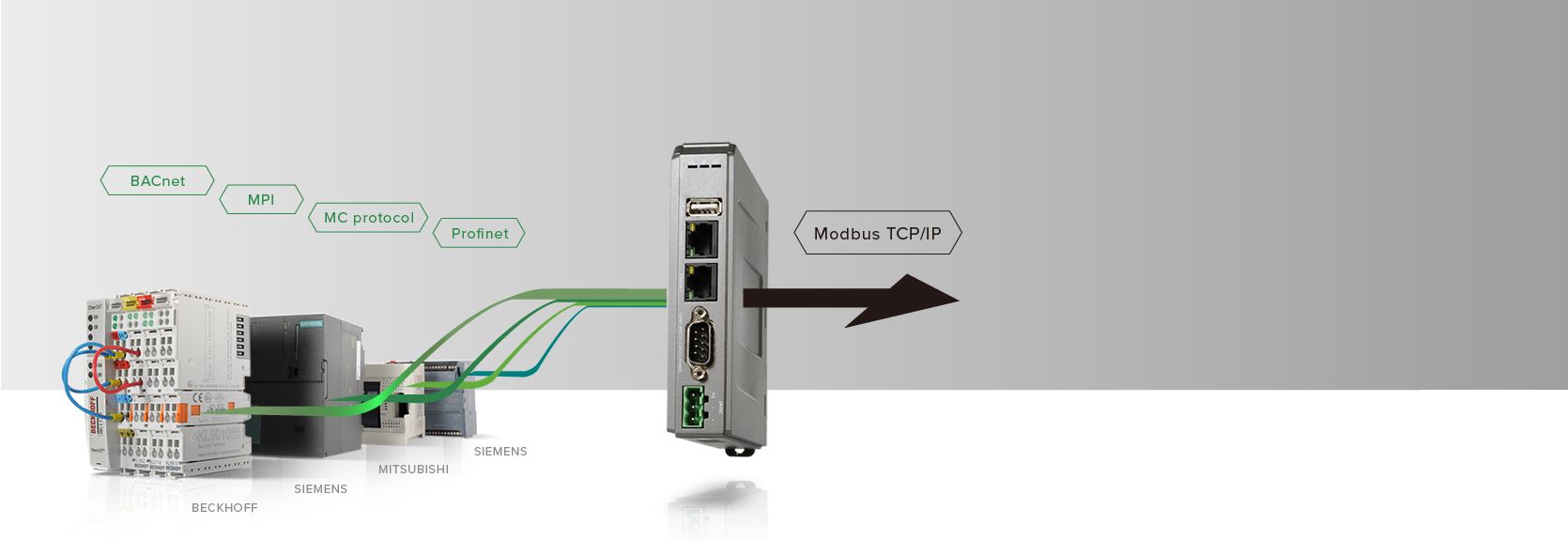

Modbus communication gateway
OPC UA (optional)
Modbus is the most widely used communication
protocol in industrial automation applications
and most SCADA system supports this protocol.
With Modbus, SCADA system can easily communicate
with serial devices on the Internet.

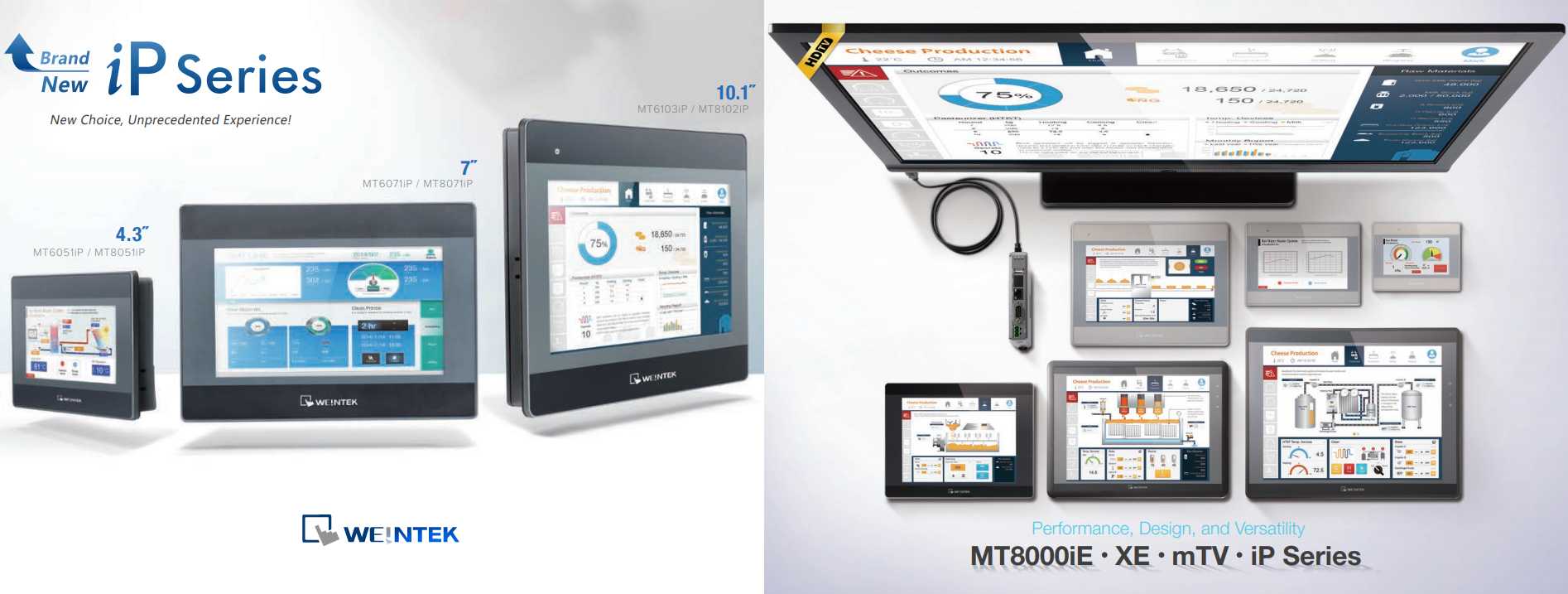

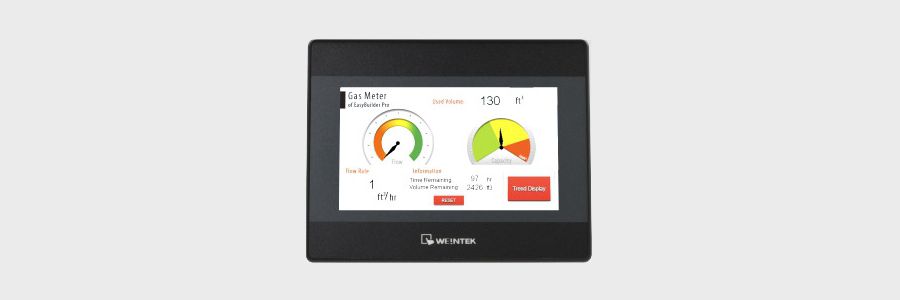

Weintek MT8051iP
- 4.3" 480x272 TFT LCD
- 16.7M Colours with LED Back Light
- 4-wire Resistive type Touch screen
- 128 MB Flash and 128 MB RAM Memory
- 32-bit RISC Cortex-A8 600MHz Processor
- One USB Host and Ethernet Port
- One COM Port for RS-232 and RS-485(2W/4W)
- Built-in RTC

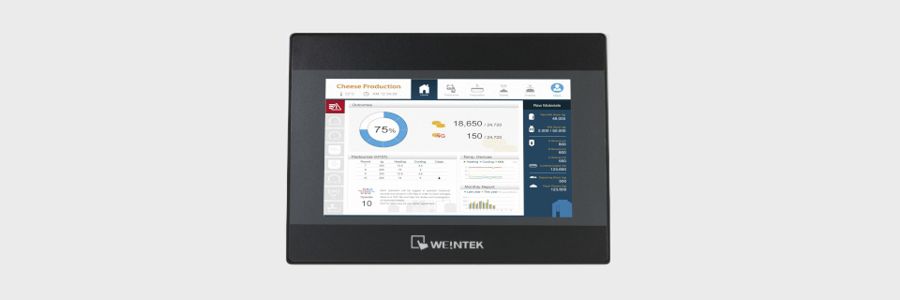

Weintek MT8071iP
- 7" 800x480 TFT LCD
- 16M Colours with LED Back Light
- 4-wire Resistive type Touch screen
- 128 MB Flash and 128 MB RAM Memory
- 32-bit RISC Cortex-A8 600MHz Processor
- One USB Host and Ethernet Port
- One COM Port for RS-232 and RS-485(2W/4W)
- Built-in RTC

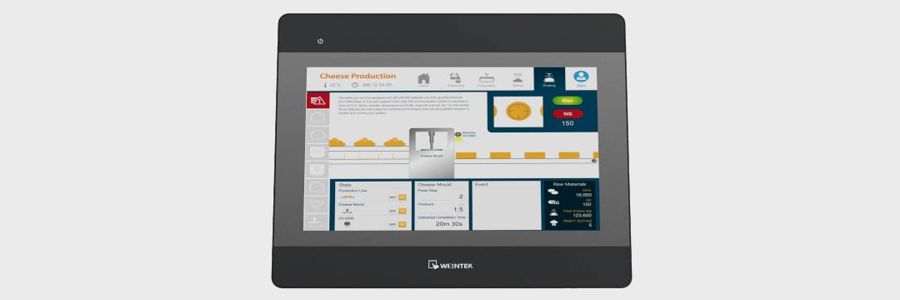

Weintek MT8102iP
- 10.1" 1024x600 TFT LCD
- 16.7M Colours with LED Back Light
- 4-wire Resistive type Touch screen
- 128 MB Flash and 128 MB RAM Memory
- 32-bit RISC Cortex-A8 528MHz Processor
- One USB Host and Ethernet Port
- Two COM Ports for RS-232(2W/4W) and RS-485(2W/4W)
- Built-in RTC

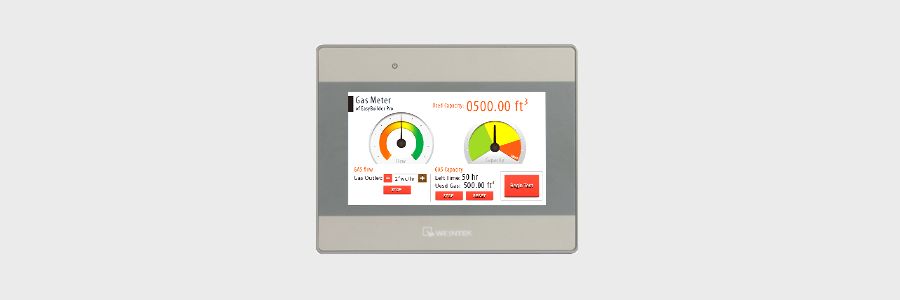

Weintek MT8050iE
- 4.3" 480x272 TFT LCD
- 16.7M Colours with LED Back Light
- 4-wire Resistive type Touch screen
- 128 MB Flash and 128 MB RAM Memory
- 32-bit RISC Cortex-A8 600MHz Processor
- One USB Host and Ethernet Port
- One COM Port for RS-232 and RS-485(2W/4W)
- Built-in RTC
- Email | MQTT | OPC UA Client | VNC Server & Viewer

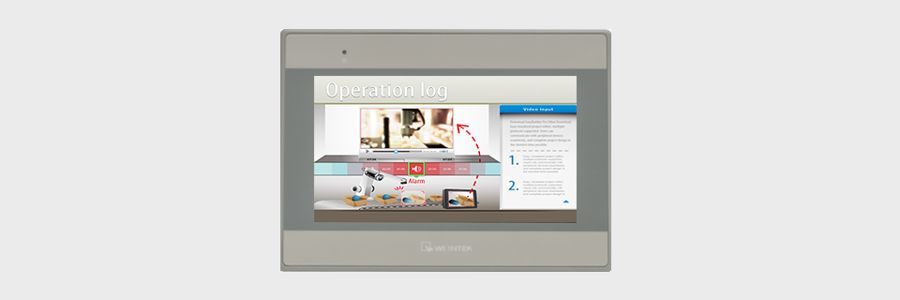

Weintek MT8071iE
- 7" 800x480 TFT LCD
- 16.7M Colours with LED Back Light
- 4-wire Resistive type Touch screen
- 128 MB Flash and 128 MB RAM Memory
- 32-bit RISC Cortex-A8 600MHz Processor
- One USB Host and Ethernet Port
- Two COM Ports for RS-232 and RS-485(2W/4W)
- Built-in RTC
- Email | MQTT | OPC UA Client | VNC Server & Viewer

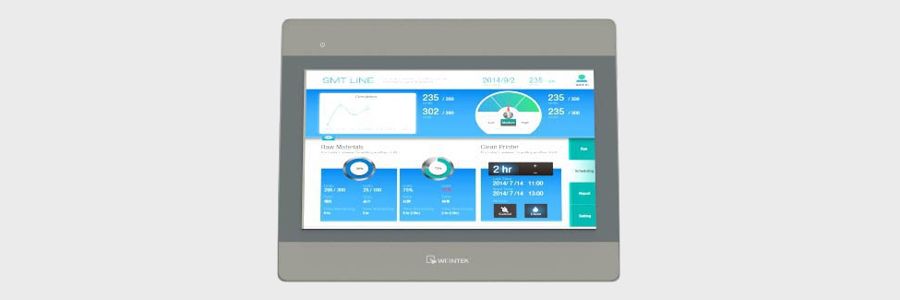

Weintek MT8103iE
- 10.1" 1024x600 TFT LCD
- 16.7M Colours with LED Back Light
- 4-wire Resistive type Touch screen
- 128 MB Flash and 128 MB RAM Memory
- 32-bit RISC Cortex-A8 600MHz Processor
- USB Host | WiFi | Ethernet Port
- Two COM Ports for RS-232 and RS-485(2W/4W)
- Built-in RTC
- Built-in EasyAccess 2.0 License
- Email | MQTT | OPC UA Client | VNC Server & Viewer

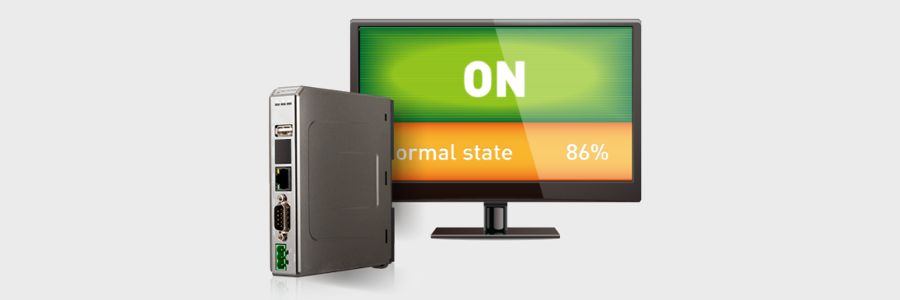

Weintek mTV-100
- HD 720p High Resolution HDMI Output
- 256 MB Flash and 256 MB RAM Memory
- SD Card Slot for Expansion of Storage
- 32-bit RISC Cortex-A8 600MHz Processor
- One USB Host Port and Gigabit Ethernet Port
- One COM Port for RS-232 and RS-485(2W/4W)
- Built-in RTC
- Email | MQTT | OPC UA Client | VNC Server & Viewer | USB Camera

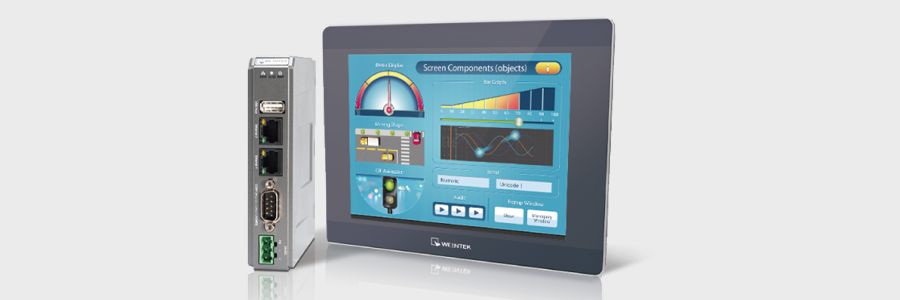

Weintek cMT-SVR-100/102
- Supports Display on cMT-iV5/cMT-iPC15/PC/Android/iOS
- 256 MB Flash and 256 MB RAM Memory
- SD Card Slot for Expansion of Storage
- 32-bit RISC Cortex-A8 600MHz Processor
- 1 USB Host Port | 2 Gigabit Ethernet Ports
- One COM Port for RS-232 and RS-485(2W/4W)
- Built-in RTC
- SVR-102 - Built-in EasyAccess 2.0 License
- Supports Database Server and SQL Query
- Email | 3G/4G Dongle | MQTT | OPC UA Client

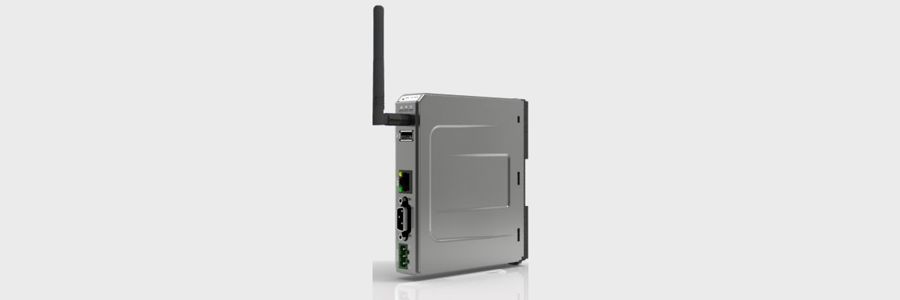

Weintek cMT-SVR-200
- Supports Display on cMT-iV5/cMT-iPC15/PC/Android/iOS
- 256 MB Flash and 256 MB RAM Memory
- SD Card Slot for Expansion of Storage
- 32-bit RISC Cortex-A8 600MHz Processor
- USB Host Port | WiFi | Gigabit Ethernet Port
- One COM Port for RS-232 and RS-485(2W/4W)
- Built-in RTC
- Supports Database Server and SQL Query
- Email | 3G/4G Dongle | MQTT | OPC UA Client

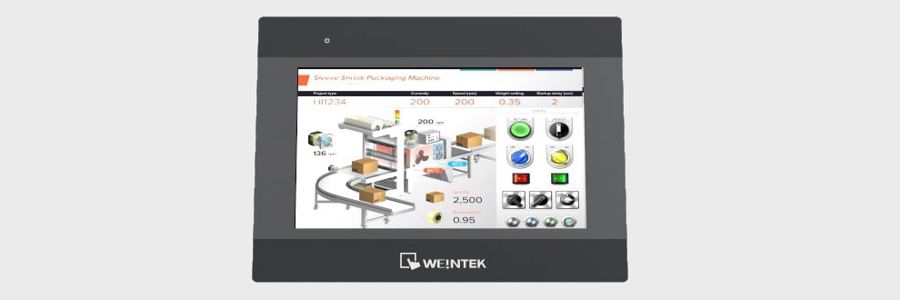

Weintek cMT-3072
- 7" 1024x600 IPS LCD with 16.7M Colours
- Supports Display on PC/Android/iOS
- 4 GB Flash and 1 GB RAM Memory
- SD Card Slot for Expansion of Storage
- 32-bit RISC Cortex-A8 1GHz Processor
- 1 USB Host | 2 Ethernet Ports
- Two COM Ports for RS-232(2W/4W) and RS-485(2W/4W)
- Built-in RTC
- Built-in EasyAccess 2.0 License
- Supports Database Server and SQL Query
- Email | 3G/4G Dongle | MQTT | OPC UA Server & Client | VNC Server | CAN Enabled

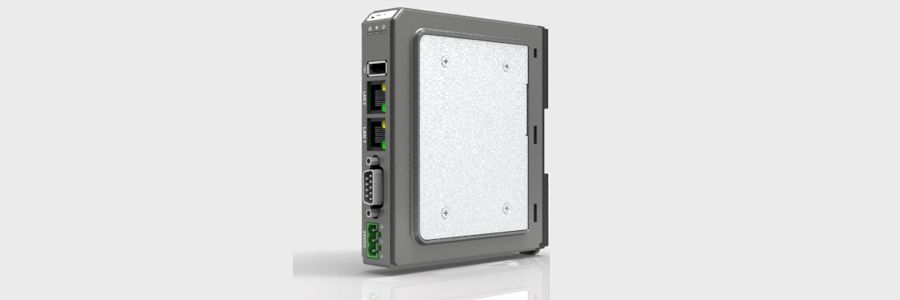

Weintek cMT-FHDX
- Full HD 1080p High Resolution HDMI Output
- Supports Display on cMT-iV5/cMT-iPC15/PC/Android/iOS
- 4 GB Flash and 1 GB RAM Memory
- Quad-core Cortex-A17 1.66GHz CPU with High Performance dedicated 3D Processor
- Plays video in high resolution, video decode 1080p H.264
- 1 USB Host | 2 Ethernet Ports
- One COM Port for RS-232 and RS-485(2W/4W)
- Built-in RTC
- Supports Database Server and SQL Query
- Email | 3G/4G Dongle | MQTT | OPC UA Client | VNC Server

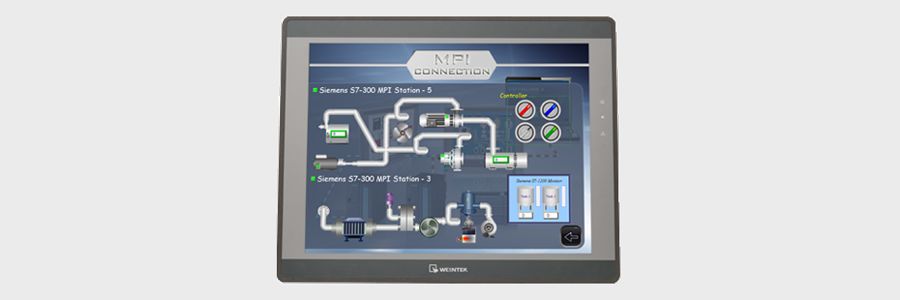

Weintek eMT-3150A
- 15" 1024x768 TFT LCD
- 16.2M Colours with LED Back Light
- 4-wire Resistive type Touch screen
- 256 MB Flash and 256 MB RAM Memory
- SD Card Slot for Expansion of Storage
- 32-bit RISC Cortex-A8 800MHz Processor
- USB Host | USB Client | Ethernet Port
- Two COM Ports for RS-232 and RS-485(2W/4W)
- Built-in RTC
