Digital Timers

Digital Sequential Timer

Relay Output

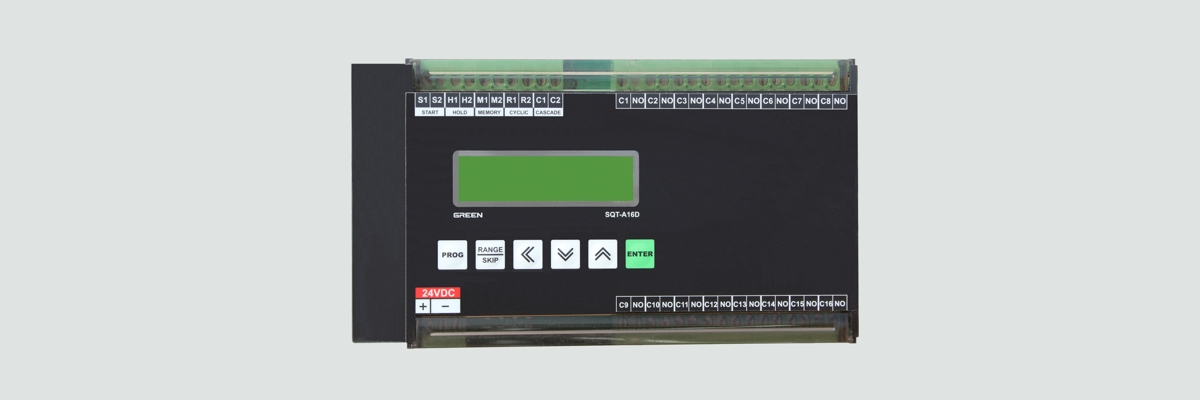

GWC-4848 Green

Digital Sequential Timer
16 x 2 Character LCD display
Single and cyclic mode
Holding and cascading facility
Process value retention in case of power failure
Dimension : 180 x 122 x 75


Model Function Direction Source Voltage Timer Range Output
SQT - A16 Sequential Down 230 VAC 0.1 Sec - 99.59 Hrs 16 - 1 c/o Relay
SQT - A08 Sequential Down 230 VAC 0.1 Sec - 99.59 Hrs 8 - 1 c/o Relay
SQT - A16D Sequential Down 24 VDC 0.1 Sec - 99.59 Hrs 16 - 1 c/o Relay
SQT - A08D Sequential Down 24 VDC 0.1 Sec - 99.59 Hrs 8 - 1 c/o Relay

Transistor Output

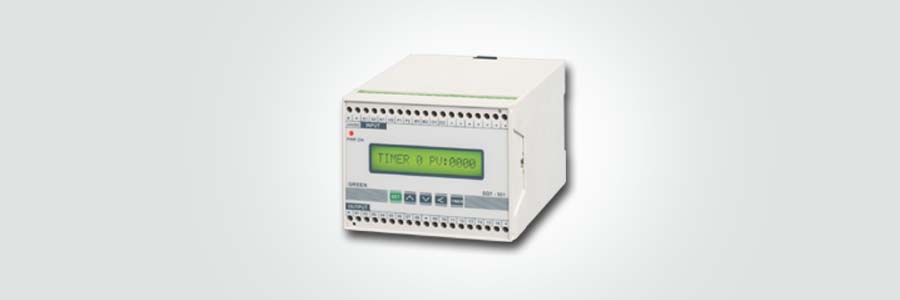

GLC-4026 GPO-A01

Digital Sequential Timer
16 x 1 Character LCD display
Single and cyclic mode
Holding and cascading facility
Process value retention in case of power failure
Dimension : 100 x 75 x 110


Model Function Direction Source Voltage Timer Range Output Data sheet
SQT - 581 Sequential Down 24 VDC 0.1 Sec - 999 Hrs 8 PNP type Transistor Timer SQT-581
SQT - 501 Sequential Down 24 VDC 0.1 Sec - 999 Hrs 16 PNP type Transistor Timer SQT-501


Digital Step Timer

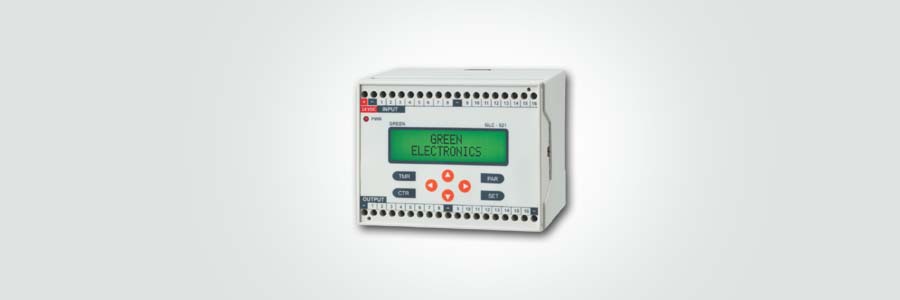

GLC 523 Green

16 Output Step Timers
16 x 2 Character LCD display
Single and Cyclic Mode Holding and Skip step facility
Process value retention in case of power failure
Dimension : 100 x 75 x 110



Model Function Direction Program Memory Timer Range Output Data sheet
STP - 511 Step Timer Down 32 Steps 0.1 Sec - 999 Hrs 16 PNP type Transistor Step Timer STP-511
STP - 518 Step Timer Down 32 Steps 0.1 Sec - 999 Hrs 8 PNP type Transistor Step Timer STP-518


Special Timer

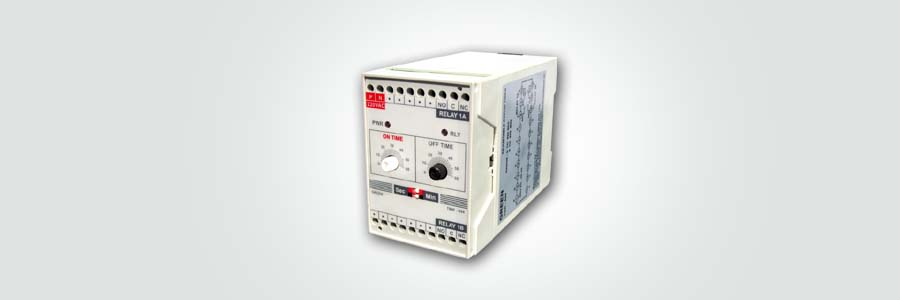

GCU 521 Green

Din rail mountable
Range Selection by DIP Switch
Din rail mountable
LED Indication for relay ON
Available in 2 and 4 potentiometers
Dimension : 55 x 75 x 110 ( Width x Height x Depth )



Model Function Source Voltage Timer Range Output
TMR - 894 Adjustable Cyclic 220 VAC 0.1 Sec - 60 Sec / Mins 2 c/o Relay
TMR - 8F4 For / Del / Rev 220 VAC 0.1 Sec - 30 Sec / Mins 2 c/o Relay
