Capacitive Proximity Sensors

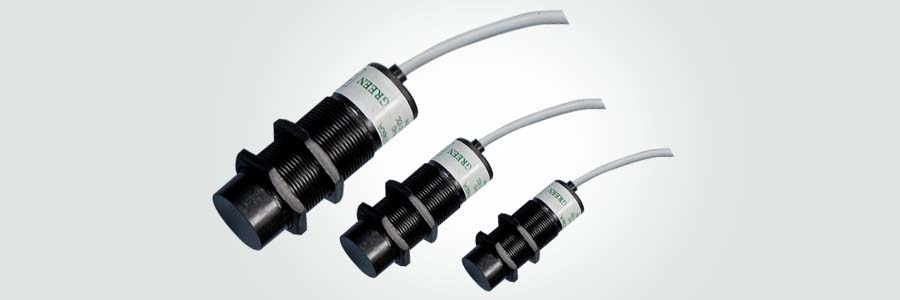

Capacitive DC Proximity Sensors

Capacitive DC Proximity Sensors

Cylindrical Type
Supply voltage : 10 - 30 VDC
Current consumption : < 15mA
Maximum load : 200 mA
Polarity & Short circuit protection



Diameter : 18 mm / Supply Voltage : 10 - 30 VDC

Model Output Housing Switching Frequency Length in mm Sensing in mm
C18 - POF NO Flush 25Hz 71 5
C18 - POE NO Non Flush 25Hz 71 8
C18 - PCF NC Flush 25Hz 71 5
C18 - PCE NC Non Flush 25Hz 71 8


Diameter : 30 mm / Supply Voltage : 10 - 30 VDC

Model Output Housing Switching Frequency Length in mm Sensing in mm
C30 - POF NO Flush 25Hz 74 10
C30 - POE NO Non Flush 25Hz 74 15
C30 - PCF NC Flush 25Hz 74 10
C30 - PCE NC Non Flush 25Hz 74 15


Capacitive AC Proximity Sensors

Capacitive AC Proximity Sensors

Cylindrical Type
Supply voltage : 90 - 250 VAC
Current consumption : <2mA
Maximum load : 250 mA



Diameter : 30 mm / Supply Voltage : 90 - 250 VAC

Model Output Housing Switching Frequency Length in mm Sensing in mm
C30 - AOF NO Flush 10Hz 72 10
C30 - AOE NO Non Flush 10Hz 72 15
C30 - ACF NC Flush 10Hz 72 10
C30 - ACE NC Non Flush 10Hz 72 15
