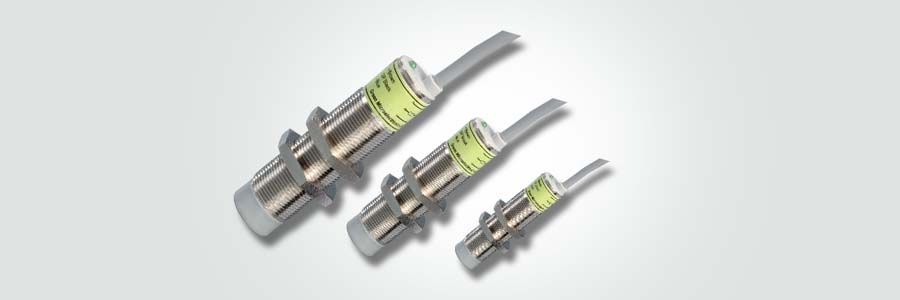

Cylindrical Type
Supply voltage : 10 - 30 VDC
Current consumption : < 15mA
Maximum load : 200 mA
Polarity & Short circuit Protection
Higher Switching Frequency
Diameter : 8 mm / Supply Voltage : 10 - 30 VDC
| Model |
Output |
Housing |
Switching Frequency |
Length in mm |
Sensing in mm |
| M8 - POF |
NO |
Flush |
2KHz |
48 |
1 |
| M8 - POE |
NO |
Non Flush |
2KHz |
52 |
2 |
| M8 - PCF |
NC |
Flush |
2KHz |
48 |
1 |
| M8 - PCE |
NC |
Non Flush |
2KHz |
52 |
2 |
Diameter : 18 mm / Supply Voltage : 10 - 30 VDC
| Model |
Output |
Housing |
Switching Frequency |
Length in mm |
Sensing in mm |
| M18 - POF |
NO |
Flush |
500Hz |
60 |
5 |
| M18 - POE |
NO |
Non Flush |
500Hz |
65 |
8 |
| M18 - PCF |
NC |
Flush |
500Hz |
60 |
5 |
| M18 - PCE |
NC |
Non Flush |
500Hz |
65 |
8 |
Diameter : 30 mm / Supply Voltage : 10 - 30 VDC
| Model |
Output |
Housing |
Switching Frequency |
Length in mm |
Sensing in mm |
| M30 - POF |
NO |
Flush |
300Hz |
63 |
10 |
| M30 - POE |
NO |
Non Flush |
300Hz |
72 |
15 |
| M30 - PCF |
NC |
Flush |
300Hz |
63 |
10 |
| M30 - PCE |
NC |
Non Flush |
300Hz |
72 |
15 |
