Photoelectric Sensors

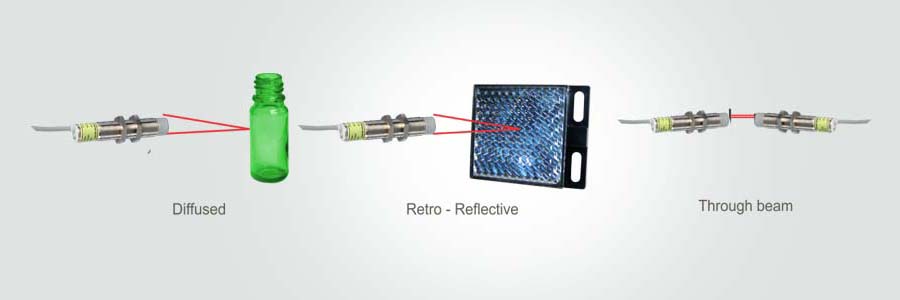

Photoelectric Sensors ( Cylindrical )

Photoelectric Sensors (Cylindrical)

Cylindrical Type
Supply voltage : 10 - 30 VDC
Current consumption : < 15mA
Maximum load : 200 mA
Polarity & Short circuit protection



Diameter : 18 mm / Supply Voltage : 10 - 30 VDC

Model Type Output Switching Frequency Length in mm Sensing in mm
Diffused D-18-P PNP NO / NC 250Hz 75 300 mm Adjustable
D-18-N NPN NO / NC 250Hz 75 300 mm Adjustable
Retro - Reflective R-18-P PNP NO / NC 250Hz 80 2 mts Adjustable
R-18-N NPN NO / NC 250Hz 80 2 mts Adjustable
Through Beam T- 18 -P PNP NO / NC 250Hz 75 5 mts Adjustable
T- 18 -N NPN NO / NC 250Hz 75 5 mts Adjustable

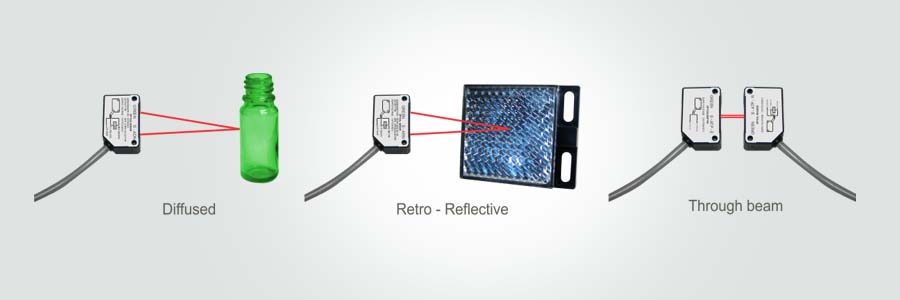

Photoelectric Sensors ( Rectangular )

Photoelectric Sensors (Rectangular)

Rectangular Type
Supply voltage : 10 - 30 VDC
Current consumption : < 15mA
Maximum load : 100 mA
Light ON,Dark ON Selectable by Switch


Model Dimension in mm
Length x Width x Depth
Type Response Time Sensing Distance
Diffused S - ADP 31 x 20 x 11 PNP 0.5 mSec 70 cm
S - ADN 31 x 20 x 11 NPN 0.5 mSec 70 cm
Retro - Reflective S - ARP 31 x 20 x 11 PNP 0.5 mSec 3.5 M
S - ARN 31 x 20 x 11 NPN 0.5 mSec 3.5 M
Through Beam S - ATP 31 x 20 x 11 PNP 0.5 mSec 12 M
S - ATN 31 x 20 x 11 NPN 0.5 mSec 12 M
